Name: Bohrrohr Typ 25
SKU: 25-9410-OAL
Availability: InStock

Description

Weitere Ausführungen:

BD1	BD2	DCONWS	LCONWS	wdt_ID	Gewindesteigung	Artikelnummer
12,0 mm	8,0 mm	11,5 mm	23,3 mm	1	6 mm	25-9310-OAL
13,0 mm	8,5 mm	11,8 mm	23,3 mm	2	6 mm	25-9410-OAL
13,0 mm	8,5 mm	12,4 mm	23,3 mm	3	6 mm	25-9510-OAL
14,0 mm	9,0 mm	12,7 mm	23,3 mm	4	6 mm	25-9610-OAL
14,0 mm	9,0 mm	13,4 mm	23,3 mm	5	6 mm	25-9710-OAL
15,0 mm	10,0 mm	13,7 mm	23,3 mm	6	6 mm	25-9810-OAL
15,0 mm	10,0 mm	14,4 mm	23,3 mm	7	6 mm	25-9910-OAL
16,5 mm	11,0 mm	15,5 mm	23,0 mm	8	6 mm	25-0110-OAL
18,0 mm	12,0 mm	16,5 mm	26,0 mm	9	10 mm	25-0210-OAL
20,0 mm	13,0 mm	19,0 mm	26,0 mm	10	10 mm	25-0310-OAL
22,0 mm	14,0 mm	20,0 mm	26,0 mm	11	10 mm	25-0410-OAL
24,0 mm	15,5 mm	22,0 mm	26,0 mm	12	10 mm	25-0510-OAL
26,0 mm	17,0 mm	24,0 mm	26,0 mm	13	10 mm	25-0610-OAL
28,0 mm	18,5 mm	26,0 mm	26,0 mm	14	10 mm	25-0710-OAL
30,0 mm	20,0 mm	27,0 mm	41,0 mm	15	20 mm	25-0810-OAL
33,0 mm	23,0 mm	30,0 mm	41,0 mm	16	20 mm	25-0910-OAL
36,0 mm	25,5 mm	33,0 mm	41,0 mm	17	20 mm	25-1010-OAL
39,0 mm	28,0 mm	37,0 mm	41,0 mm	18	20 mm	25-1110-OAL
43,0 mm	31,0 mm	41,0 mm	41,0 mm	19	20 mm	25-1210-OAL
47,0 mm	35,0 mm	44,0 mm	41,0 mm	20	20 mm	25-1310-OAL
51,0 mm	39,0 mm	49,0 mm	41,0 mm	21	20 mm	25-1410-OAL
56,0 mm	43,0 mm	53,0 mm	41,0 mm	22	20 mm	25-1510-OAL
62,0 mm	48,0 mm	59,0 mm	41,0 mm	23	20 mm	25-1710-OAL
68,0 mm	53,0 mm	65,0 mm	71,0 mm	24	40 mm	25-1810-OAL
75,0 mm	59,0 mm	71,0 mm	71,0 mm	25	40 mm	25-1910-OAL
82,0 mm	66,0 mm	79,0 mm	71,0 mm	26	40 mm	25-2010-OAL
94,0 mm	78,0 mm	90,0 mm	71,0 mm	27	40 mm	25-2110-OAL
106,0 mm	88,0 mm	102,0 mm	71,0 mm	28	40 mm	25-2210-OAL
118,0 mm	94,0 mm	114,0 mm	71,0 mm	29	40 mm	25-2310-OAL
130,0 mm	104,0 mm	126,0 mm	71,0 mm	30	40 mm	25-2410-OAL
142,0 mm	116,0 mm	139,0 mm	71,0 mm	31	40 mm	25-2510-OAL
154,0 mm	128,0 mm	151,0 mm	86,0 mm	32	56 mm	25-2610-OAL
166,0 mm	136,0 mm	163,0 mm	86,0 mm	33	56 mm	25-2710-OAL
178,0 mm	145,0 mm	175,0 mm	86,0 mm	34	56 mm	25-2810-OAL
190,0 mm	154,0 mm	187,0 mm	86,0 mm	35	56 mm	25-2910-OAL
202,0 mm	166,0 mm	199,0 mm	86,0 mm	36	56 mm	25-3010-OAL
214,0 mm	178,0 mm	211,0 mm	86,0 mm	37	56 mm	25-3110-OAL
226,0 mm	190,0 mm	223,0 mm	86,0 mm	38	56 mm	25-3210-OAL
238,0 mm	202,0 mm	235,0 mm	86,0 mm	39	56 mm	25-3310-OAL
250,0 mm	214,0 mm	247,0 mm	121,0 mm	40	56 mm	25-3410-OAL
262,0 mm	226,0 mm	259,0 mm	121,0 mm	41	56 mm	25-3510-OAL
274,0 mm	238,0 mm	271,0 mm	121,0 mm	42	56 mm	25-3610-OAL
286,0 mm	250,0 mm	283,0 mm	121,0 mm	43	56 mm	25-3710-OAL
298,0 mm	262,0 mm	295,0 mm	121,0 mm	44	56 mm	25-3810-OAL
310,0 mm	274,0 mm	307,0 mm	121,0 mm	45	56 mm	25-3910-OAL
322,0 mm	286,0 mm	319,0 mm	121,0 mm	46	56 mm	25-4010-OAL
334,0 mm	298,0 mm	331,0 mm	121,0 mm	47	56 mm	25-4110-OAL
346,0 mm	310,0 mm	343,0 mm	121,0 mm	48	56 mm	25-4210-OAL

Bohrrohr Typ 25

Bohrrohr Typ 25

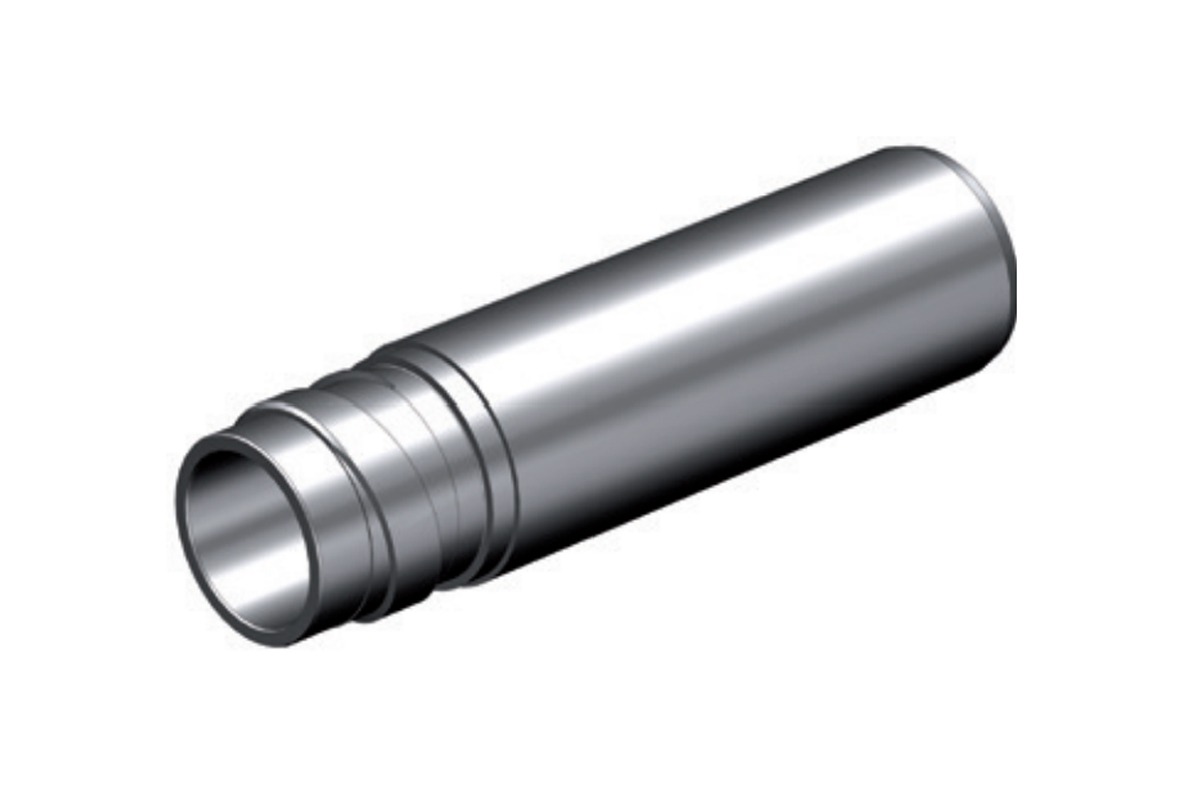

Bohrrohr Typ 25 mit 1-gängigem Außengewinde
