System BTA

wdt_ID Category Type Picture Dia. from Dia. to Connection thread Actions

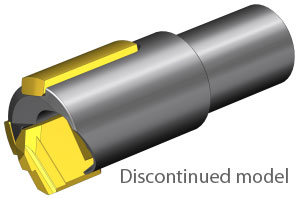

1 Solid drilling Type 17 7.76 15.50 brazed

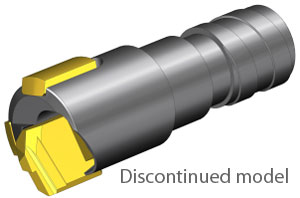

2 Solid drilling Type 18 12.21 15.50 1-start connection
3 Solid drilling Type 20 14.51 36.99 1-start connection
4 Solid drilling Type 11 14.55 36.99 1-start connection
5 Solid drilling Type 70B 25.00 65.00 1-start connection
6 Solid drilling Type 12 28.50 74.99 1-start connection
8 Solid drilling Type 14 15.60 65.00 4-start connection
9 Solid drilling Type 61 15.65 36.20 4-start connection
10 Solid drilling Type 70A 25.00 65.00 4-start connection


11 Solid drilling Type 64 28.71 74.99 4-start connection
13 Solid drilling Type 43B 60.00 368.99 1-start connection

14 Solid drilling Type 43A 60.00 198.99 from 199.00 on request 4-start connection

15 Solid drilling Type 43F 199.00 368.99 flange mounting
16 Counterboring Type 13B 28.50 74.99 1-start connection
17 Counterboring Type 13A 28.71 74.99 4-start connection
18 Counterboring Type 34 44.00 353.99 1-start connection
19 Counterboring Type 54 47.00 353.99 4-start connection
20 Counterboring Type 35B 61.00 498.99 1-start connection
21 Counterboring Type 35A 61.00 223.99 4-start connection
22 Counterboring Type 35F 224.00 498.99 flange mounting
23 Counterboring Type 36 60.00 250.00 1-start connection
25 Counterboring Type 33B 159.00 498.99 1-start connection
26 Counterboring Type 33A
on request		 159.00 223.99 4-start connection
27 Counterboring Type 33F
on request		 224.00 498.99 flange mounting
28 Pull boring head Type 38 20.00 222.99 1-start connection
29 Pull boring head Type 58 20.00 222.99 4-start connection
30 Trepanning Type 28 55.00 412.99 1-start connection
31 Trepanning Type 48 55.00 197.99 4-start connection
32 Trepanning Type 48 198.00 412.99 flange mounting
33 Core cutter Type 29 for cores up to max. 60.00 mm
34 Counterboring Type 56
on request		 60.00 250.00 1-start connection, 4-start connection or flange mounting
