Solid Carbide Drill

wdt_ID Type Picture Design Dia. from Dia. to Actions
1 Type 113 Solid carbide gundrill kidney-shaped coolant channel 0.500 12.000

2 Type 113-01 Solid carbide stepped drill kidney-shaped coolant channel 1.500 ...
3 Type 113-HP Solid carbide gundrill New: High performance tool design alternative to carbide twist drills 0.700 12.000

4 Type 113-HP-M Solid carbide gundrill New: High performance tool design for the usage with MQL 2.000 12.000
5 Type 113-02 Single flute counterboring tool solid carbide 0.5000 10,000
6 Type 123 Solid carbide 2-fluted drill coolant fed double margin 2.800 32.000
7 Type 123-01 Solid carbide 2-fluted drill for taps, coolant fed, step angle 90° 2.800 32.000
8 Type 123-02 Solid carbide 2-fluted step drill for taps, coolant fed, step angle 180° 2.800 32.000
9 Type 158-00 Solid carbide twist drill (high performance twist drill) in solid carbide design, 4 margins/ coolant fed, point angle 140° 3.00 14.00

10 Type 158-01 Solid carbide twist drill in solid carbide design, 2 margins/ coolant fed, point angle 140° 3.00 14.00

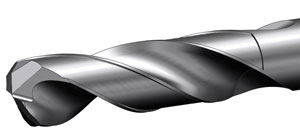

11 Type 153-02 Solid carbide pilot drill not coolant fed/point angle 140° 3 x D (drill flute length) 0.800 26.000
12 Type 153-03 Solid carbide pilot drill coolant fed/point angle140° 3 x D (drill flute length) 2.000 26.000

13 Type 158-07 Solid carbide pilot drill not coolant fed/point angle 145° 3 x D (drill flute length) 3.000 14.000
14 Type 158-08 Solid carbide pilot drill coolant fed/point angle 145° 3 x D (drill flute length) 3.000 14.000

15 Type 154-02 Stepped solid carbide pilot drill, not coolant fed/ point angle 140° (SA0174), 3 x D (drill flute length) – Standard version, special design on request 0.600 32.000
16 Type 154-03 Stepped solid carbide pilot drill, not coolant fed/ point angle 140° (SA0174), 5 x D (drill flute length) – Standard version, special design on request 0.800 32.000

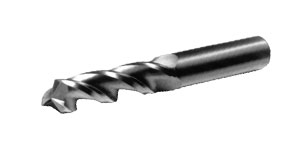

17 Type B200 Solid carbide drill DIN 1897, 3-fluted, 30° helix, 140° drill point 3.000 20.000
18 Type B300 Tap size end mill solid carbide DIN 8378, 3-fluted, 30° helix, 90° countersink 2.500 10.200
19 Type B301 Tap size end mill solid carbide DIN 8378, 3-fluted, 30° helix, 180° countersink 0.700 32.000
