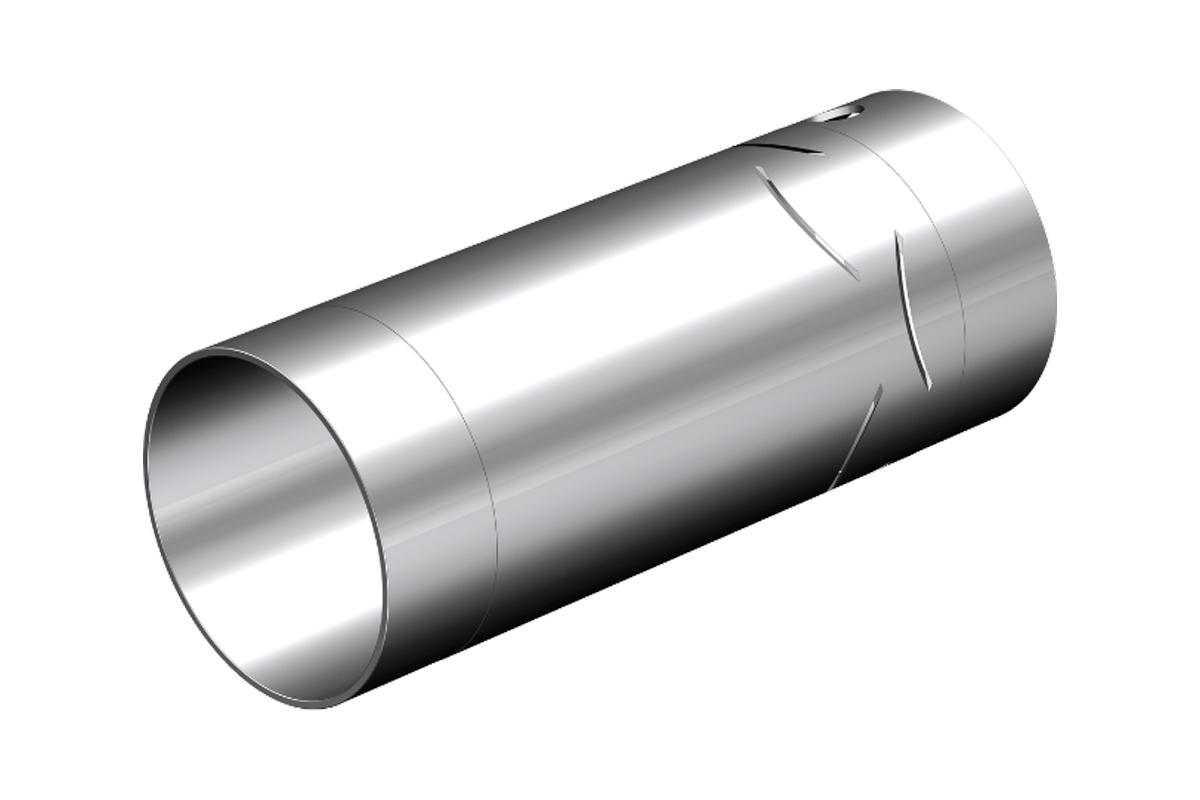

Innenrohr Typ 55
Bohrbereich: 73,00 mm – 79,99 mm

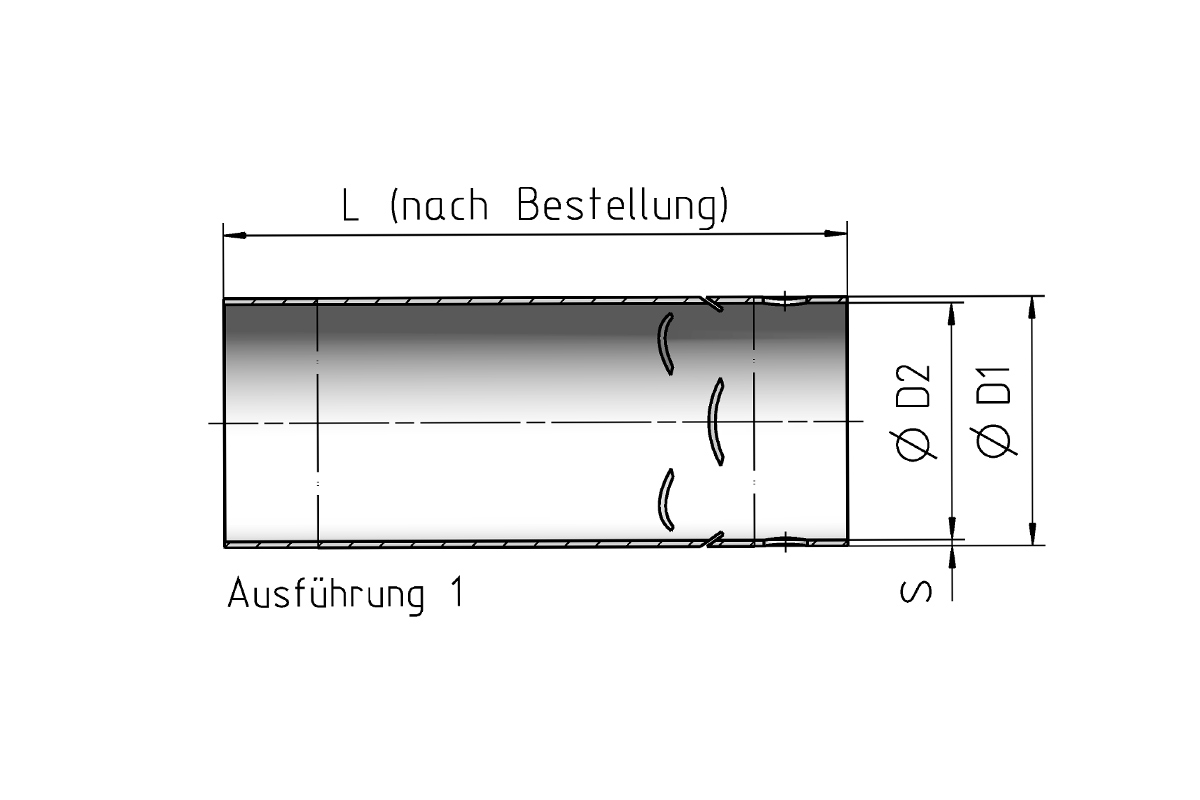

Körperdurchmesser BD1: 48,0 mm
Körperdurchmesser BD2: 45,0 mm
Wanddicke (s): 1,5 mm
Achtung!
Das Innenrohr muss 190 mm länger sein als das Außenrohr.
Gesamtlänge (OAL):
Beschreibung
Weitere Ausführungen:
| Bohrbereich | BD1 | BD2 | wdt_ID | Wanddicke | Artikelnummer |
|---|---|---|---|---|---|
| 65,00 - 66,99 mm | 40,0 mm | 38,0 mm | 1 | 1,0 mm | 55-1650-L |
| 67,00 - 72,99 mm | 44,0 mm | 41,0 mm | 2 | 1,5 mm | 55-1750-L |
| 73,00 - 79,99 mm | 48,0 mm | 45,0 mm | 3 | 1,5 mm | 55-1850-L |
| 80,00 - 86,99 mm | 54,0 mm | 50,0 mm | 4 | 2,0 mm | 55-1950-L |
| 87,00 - 99,99 mm | 60,0 mm | 56,0 mm | 5 | 2,0 mm | 55-2050-L |
| 100,00 - 111,99 mm | 70,0 mm | 66,0 mm | 6 | 2,0 mm | 55-2150-L |
| 112,00 - 123,24 mm | 80,0 mm | 76,0 mm | 7 | 2,0 mm | 55-2250-L |
| 123,25 - 136,74 mm | 80,0 mm | 76,0 mm | 8 | 2,0 mm | 55-2350-L |
| 136,75 - 147,99 mm | 95,0 mm | 91,0 mm | 9 | 2,0 mm | 55-2450-L |
| 148,00 - 159,24 mm | 100,0 mm | 96,0 mm | 10 | 2,0 mm | 55-2550-L |
| 159,25 - 171,99 mm | 120,0 mm | 116,0 mm | 11 | 2,0 mm | 55-2650-L |
| 172,00 - 188,99 mm | 130,0 mm | 126,0 mm | 12 | 2,0 mm | 55-2750-L |
