Name: Bohrrohr Typ 45 45-0110
SKU: 45-0110-OAL
Availability: InStock

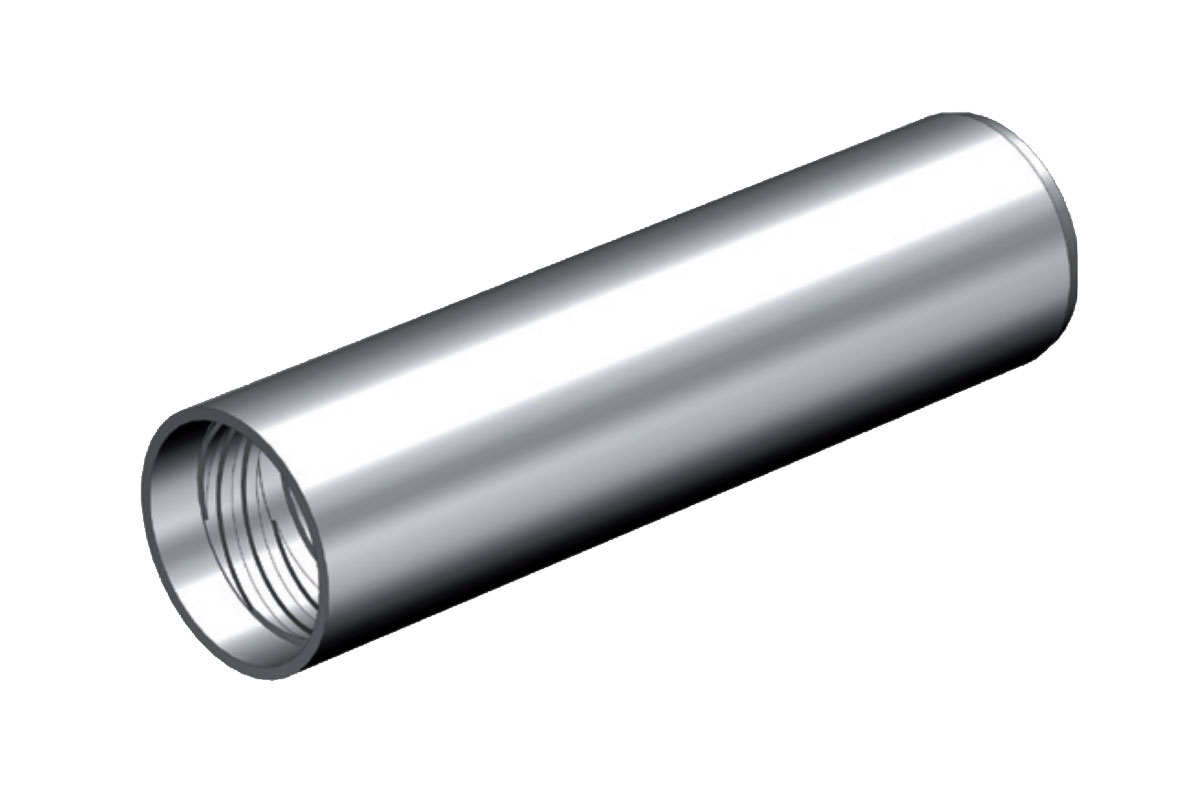

Bohrrohr Typ 45 45-0110

Bohrrohr Typ 45 mit 4-gängigem Innengewinde

Körperdurchmesser BD1: 17,0 mm
Körperdurchmesser BD2: 11,5 mm
Aufnahmedurchmesser werkstückseitig (DCONWS): 15,5 mm
Aufnahmelänge werkstückseitig (LCONWS): 22,0 mm
Gewindesteigung: 8 mm

Gesamtlänge (OAL):

Artikelnummer: 45-0110-OAL Kategorien: Bohrrohre, no Stock

Beschreibung

Weitere Ausführungen:

BD1	BD2	DCONWS	LCONWS	wdt_ID	Gewindesteigung	Artikelnummer
14,0 mm	9,0 mm	12,6 mm	21,0 mm	1	8 mm	45-9710-OAL
15,0 mm	10,0 mm	13,6 mm	21,0 mm	2	8 mm	45-9810-OAL
16,0 mm	10,5 mm	14,5 mm	22,0 mm	3	8 mm	45-9910-OAL
17,0 mm	11,5 mm	15,5 mm	22,0 mm	4	8 mm	45-0110-OAL
18,0 mm	12,0 mm	16,0 mm	21,5 mm	5	10 mm	45-0210-OAL
20,0 mm	13,0 mm	18,0 mm	21,5 mm	6	12 mm	45-0310-OAL
22,0 mm	14,0 mm	19,5 mm	21,5 mm	7	12 mm	45-0410-OAL
24,0 mm	15,5 mm	21,0 mm	21,5 mm	8	12 mm	45-0510-OAL
26,0 mm	17,0 mm	23,5 mm	24,5 mm	9	16 mm	45-0610-OAL
28,0 mm	18,5 mm	25,5 mm	24,5 mm	10	16 mm	45-0710-OAL
30,0 mm	20,0 mm	28,0 mm	24,5 mm	11	16 mm	45-0810-OAL
33,0 mm	23,0 mm	30,0 mm	30,5 mm	12	20 mm	45-0910-OAL
36,0 mm	25,5 mm	33,0 mm	30,5 mm	13	20 mm	45-1010-OAL
39,0 mm	28,0 mm	36,0 mm	30,5 mm	14	20 mm	45-1110-OAL
43,0 mm	31,0 mm	39,0 mm	30,5 mm	15	20 mm	45-1210-OAL
47,0 mm	35,0 mm	43,0 mm	34,5 mm	16	24 mm	45-1310-OAL
51,0 mm	39,0 mm	47,0 mm	34,5 mm	17	24 mm	45-1410-OAL
56,0 mm	43,0 mm	51,0 mm	34,5 mm	18	24 mm	45-1510-OAL
56,0 mm	43,0 mm	52,0 mm	75,0 mm	19	32 mm	45-1610-OAL
62,0 mm	48,0 mm	58,0 mm	75,0 mm	20	32 mm	45-1710-OAL
68,0 mm	53,0 mm	63,0 mm	75,0 mm	21	32 mm	45-1810-OAL
75,0 mm	59,0 mm	70,0 mm	97,0 mm	22	44 mm	45-1910-OAL
82,0 mm	66,0 mm	77,0 mm	97,0 mm	23	44 mm	45-2010-OAL
94,0 mm	78,0 mm	89,0 mm	97,0 mm	24	44 mm	45-2110-OAL
106,0 mm	88,0 mm	101,0 mm	118,0 mm	25	60 mm	45-2210-OAL
118,0 mm	94,0 mm	113,0 mm	118,0 mm	26	60 mm	45-2310-OAL
130,0 mm	104,0 mm	125,0 mm	118,0 mm	27	60 mm	45-2410-OAL
142,0 mm	116,0 mm	137,0 mm	139,0 mm	28	72 mm	45-2510-OAL
154,0 mm	128,0 mm	149,0 mm	139,0 mm	29	72 mm	45-2610-OAL
166,0 mm	136,0 mm	161,0 mm	139,0 mm	30	72 mm	45-2710-OAL
178,0 mm	145,0 mm	173,0 mm	144,0 mm	31	80 mm	45-2810-OAL
