Name: Tube extérieur Type 55
SKU: 55-1720-OAL
Price: 1000.00 EUR
Availability: InStock

Tube extérieur Type 55

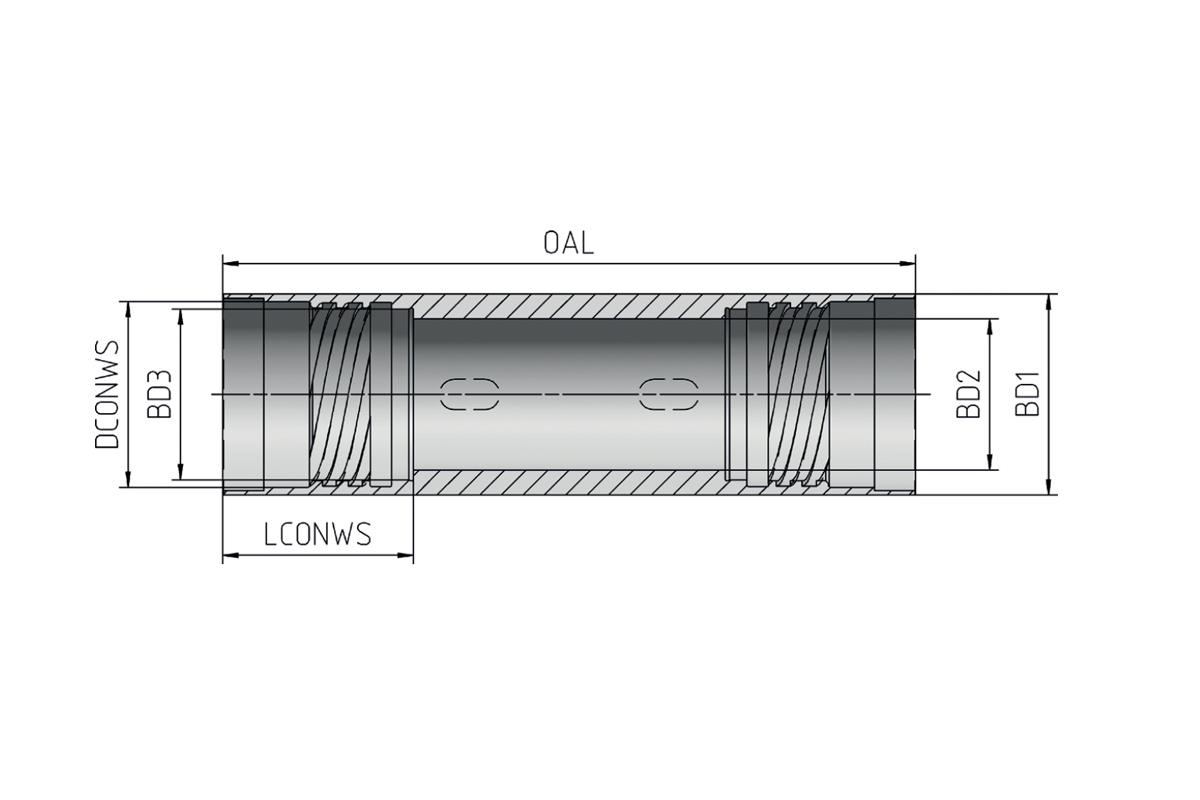

Tube extérieur Type 55 avec raccord à 4 filets filetage interne

Plage de forage: 67,00 mm – 72,99 mm
Diamètre du corps BD1: 62,0 mm
Diamètre du corps BD2: 48,0 mm
Diamètre connection, côté pièce (DCONWS): 58,0 mm
Diamètre du corps BD3: 53,0 mm
Longueur prise, côté pièce (LCONWS): 75,0 mm
Pas de vis: 32 mm
Longueur totale (OAL):

UGS : 55-1720-OAL Catégories : Bohrrohre, no Stock

Description

Autres modèles:

Plage de forage	BD1	BD2	DCONWS	BD3	LCONWS	wdt_ID	Pas de vis	Numéro d’article
18,40 mm – 19,99 mm	18,0 mm	12,0 mm	16,0 mm	14,0 mm	27,5 mm	1	10 mm	55-0110-L
20,00 mm – 21,80 mm	19,5 mm	14,0 mm	18,0 mm	16,0 mm	30,0 mm	2	12 mm	55-0210-L
21,81 mm – 23,99 mm	21,5 mm	15,0 mm	19,5 mm	17,5 mm	30,0 mm	3	12 mm	55-0310-L
24,00 mm – 26,49 mm	23,5 mm	16,0 mm	21,0 mm	19,0 mm	30,0 mm	4	12 mm	55-0410-L
26,50 mm – 28,70 mm	26,0 mm	18,0 mm	23,5 mm	21,0 mm	33,0 mm	5	16 mm	55-0510-L
28,71 mm – 31,00 mm	28,0 mm	20,0 mm	25,5 mm	23,0 mm	33,0 mm	6	16 mm	55-0610-L
31,01 mm – 33,30 mm	30,5 mm	22,0 mm	28,0 mm	25,5 mm	33,0 mm	7	16 mm	55-0710-L
33,31 mm – 36,20 mm	33,0 mm	24,0 mm	30,0 mm	27,0 mm	40,0 mm	8	20 mm	55-0810-L
36,21 mm – 39,60 mm	35,5 mm	26,0 mm	33,0 mm	30,0 mm	40,0 mm	9	20 mm	55-0910-L
39,61 mm – 43,00 mm	39,0 mm	29,0 mm	36,0 mm	33,0 mm	40,0 mm	10	20 mm	55-1010-L
43,01 mm – 47,00 mm	42,5 mm	32,0 mm	39,0 mm	36,0 mm	40,0 mm	11	20 mm	55-1110-L
47,01 mm – 51,70 mm	46,5 mm	35,0 mm	43,0 mm	39,5 mm	44,0 mm	12	24 mm	55-1210-L
51,71 mm – 56,20 mm	51,0 mm	39,0 mm	47,0 mm	43,5 mm	44,0 mm	13	24 mm	55-1310-L
56,21 mm – 65,00 mm	55,5 mm	43,0 mm	51,0 mm	47,5 mm	44,0 mm	14	24 mm	55-1410-L
65,00 mm – 66,99 mm	56,0 mm	43,0 mm	52,0 mm	47,0 mm	75,0 mm	15	32 mm	55-1620-L
67,00 mm – 72,99 mm	62,0 mm	48,0 mm	58,0 mm	53,0 mm	75,0 mm	16	32 mm	55-1720-L
73,00 mm – 79,99 mm	68,0 mm	53,0 mm	63,0 mm	58,0 mm	75,0 mm	17	32 mm	55-1820-L
80,00 mm – 86,99 mm	75,0 mm	59,0 mm	70,0 mm	64,0 mm	97,0 mm	18	44 mm	55-1920-L
87,00 mm – 99,99 mm	82,0 mm	66,0 mm	77,0 mm	71,0 mm	97,0 mm	19	44 mm	55-2020-L
100,00 mm – 111,99 mm	94,0 mm	78,0 mm	89,0 mm	83,0 mm	97,0 mm	20	44 mm	55-2120-L
112,00 mm – 123,24 mm	106,0 mm	88,0 mm	101,0 mm	95,0 mm	118,0 mm	21	60 mm	55-2220-L
123,25 mm – 136,74 mm	118,0 mm	94,0 mm	113,0 mm	107,0 mm	118,0 mm	22	60 mm	55-2320-L
136,75 mm – 147,99 mm	130,0 mm	104,0 mm	125,0 mm	119,0 mm	118,0 mm	23	60 mm	55-2420-L
148,00 mm – 159,24 mm	142,0 mm	116,0 mm	137,0 mm	131,0 mm	139,0 mm	24	72 mm	55-2520-L
159,25 mm – 171,99 mm	154,0 mm	128,0 mm	149,0 mm	143,0 mm	139,0 mm	25	72 mm	55-2620-L
172,00 mm – 188,99 mm	166,0 mm	140,0 mm	161,0 mm	155,0 mm	139,0 mm	26	72 mm	55-2720-L

Tube extérieur Type 55

Tube extérieur Type 55

Tube extérieur Type 55 avec raccord à 4 filets filetage interne
